HIFU uses a "focused technology ultrasound ", which uses ultrasound as an energy source and utilizes its penetrability and focability to make low-energy ultrasound in vitro focus on the skin SMAS fascia layer, producing instant high temperature at the focal point, stimulating and producing more collagen. Can effectively achieve tight contour, smooth the effect of fine lines. The combination of 4 different treatment depths of the probe can achieve a Doublo tension effect from deep to shallow.
‘NEW Doublo’ is an equipment with a new concept that combines both MFU and RF(Radio Frequency) technology in order to include all of the functionalities to create a V-line shaped face.
MFU is a type of ultrasound. Ultrasonic waves refer to waves with frequencies stands for Micro Focused High Ultra Ultrasound and can generate thermal effect in human tissues by focusing high intensity ultrasound on one point. It was originally used to destroy tumors and cancer cells without incision, but nowadays it is also applied to Elasticity/Lifting equipment.
Elasticity/Lifting procedures irradiate strong ultrasound energy inside the skin and generate heat to cause coagulation, in which tissues contract, pulling the skin together, and proceed to go through internal recovery which generates collagen to help improve skin elasticity and wrinkle improvement.
MFU lifting equipment can penetrate through 1.5mm, 3mm, 4.5mm deep into the skin, which means that the thermal energy can be transmitted to the SMAS layer, one of the main causes of skin sagging.
Along with MFU, RF is also one of the most widely used energy source in lifting therapy. RF is an electromagnetic wave with a relatively high frequency, usually 20MHz or higher, and vibrates and heats water molecules in the body.
‘NEW DOUBLO’ is composed of two types of hand-pieces : FL(Focused-ultrasound Linear) and SD(Synergy Dotted).

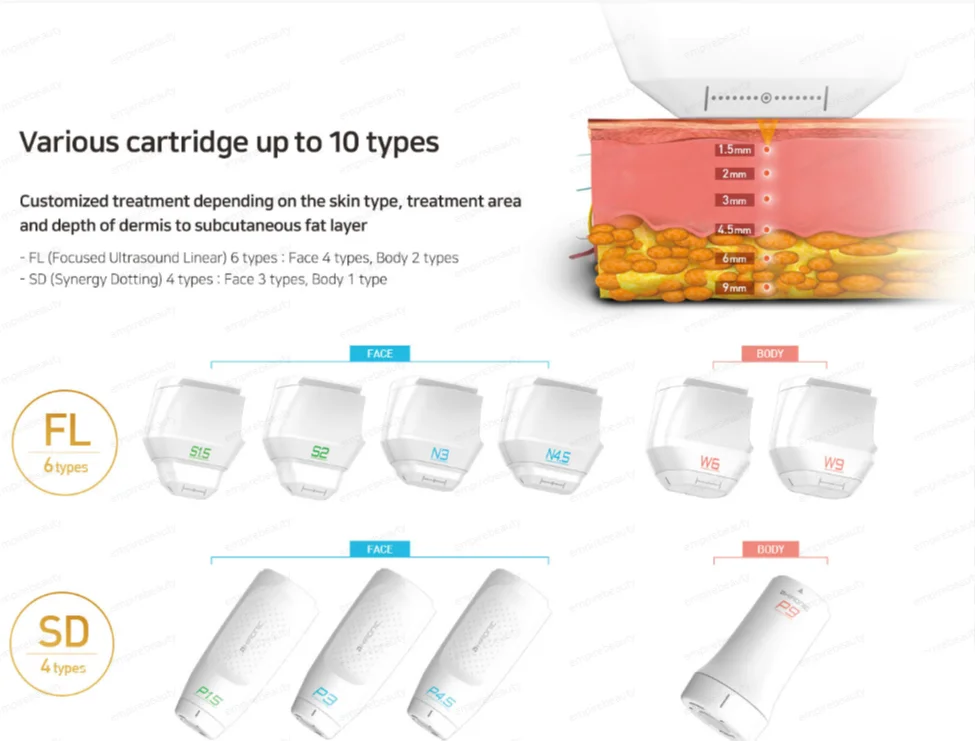

The FL hand-piece has been upgraded from the previous generation model ‘DOUBLO’. It consists of 1.5/2/3/4.5/6/9mm cartridges and they are slimmer, providing users with more visibility for more sophisticated and meticulous procedures. Above all, it has the advantage of increasing safety with its contact detection sensor and movement detection sensor.
During the procedure, if the cartridge is not tightly in line with the epidermis or not moved from one spot to another, it automatically stops the irradiation.

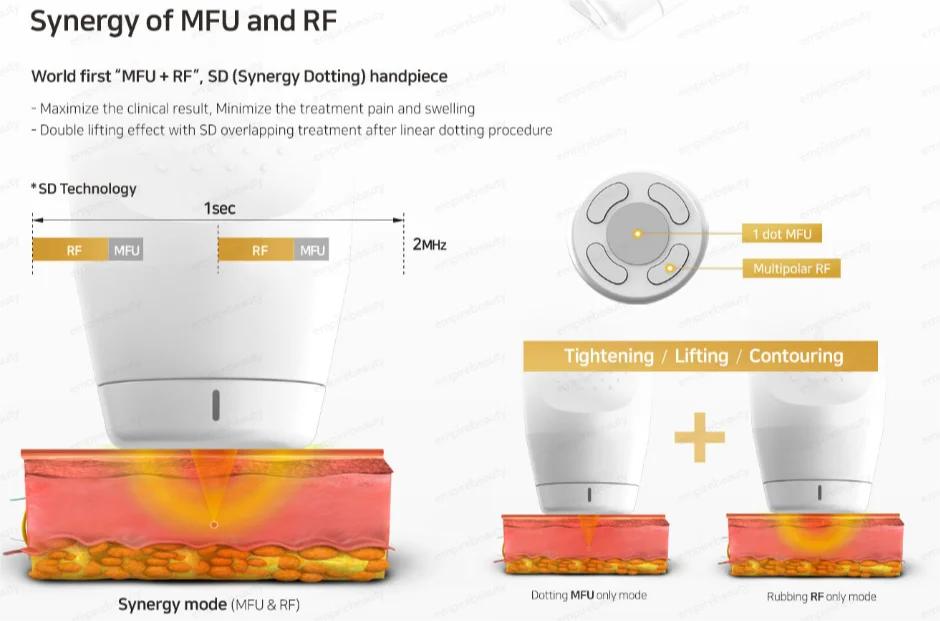

The SD hand-piece consists of 1.5/3/4.5/9mm cartridges and cross-irradiates HIFU and RF. By doing so, SD hand-piece can remarkably shorten the procedure time, and its pen-type structure enables to user to easily perform the procedure on narrow and curved areas.

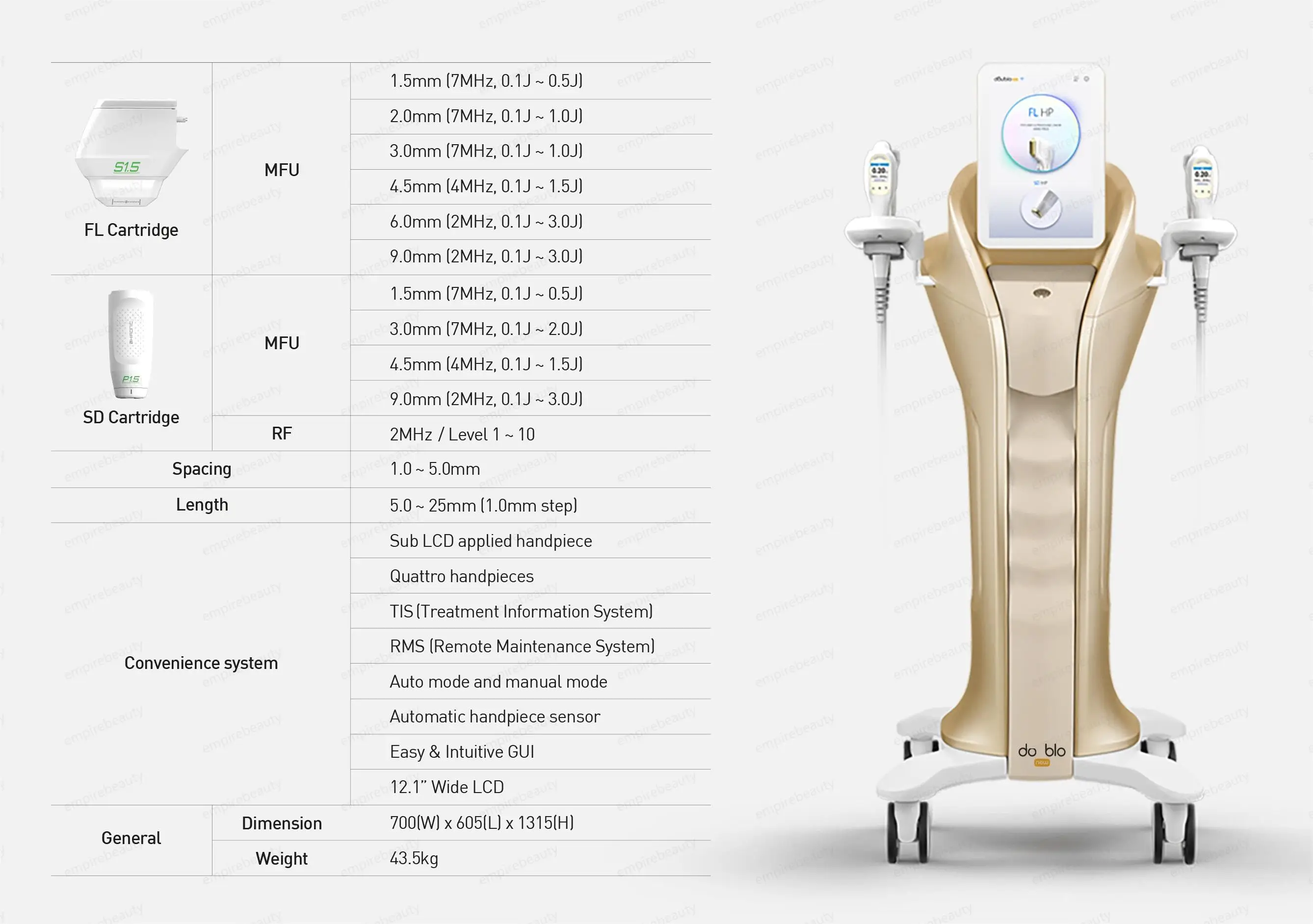

| Product name | New MFU +RF Beauty Machine |
| Technology | Ultrasound ( High intensity focused )+ Radio Frequency |
| Power | 500W |
| Energy | 0.1-3.0J |
| RF Frequency | 20MHZ |
| Cartridge | 10pcs |
| Shots | HIFU Cartridges :22,000shoots SD RF Cartridges: 100,000 shoots |
| Screen | 12.1 inches |
| Target Area | Body, Face,Eyes, Neck/Throat... |
| Function | Face Lift, Wrinkle Removal,Skin Tightening, Skin Rejuvenation, Weight Loss |
|
|
New Doublo Hifu Face Lifting Body Slimming Machine Macro Focused Ultrasound Mfu With Rf 2 In 1 4 Handles 10 Cartridges Images
|
